Manual valves are fundamental components in various industrial, commercial, and residential systems. From regulating fluid flow in pipelines to enabling on/off control in mechanical systems, manual valves serve critical roles across industries. In this guide, we’ll explore what manual valves are, the different types, key applications, how they work, how to choose the right one, and maintenance tips. If you're searching for reliable information on manual valves, this article will help you make informed decisions.
A manual valve is a type of valve operated by human effort, typically using a handwheel, lever, or gear. Unlike automated or motorized valves, manual valves require no external power source to function. They are widely used where precision control is needed and automation is not essential.
anual valves are favored for their:
Cost-effectiveness
Simplicity of design
Easy installation and operation
There are several types of manual valves, each designed for specific applications and media types. Here's an overview of the most common types:

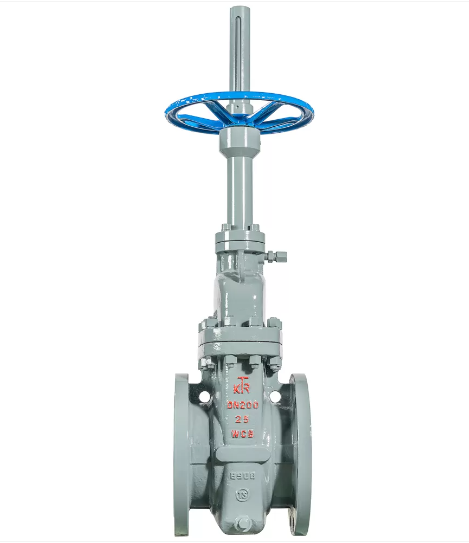

Gate valves use a sliding gate to start or stop the flow. They offer minimal pressure drop and are best for on/off applications.
Advantages:
Low fluid resistance
Bi-directional sealing
Suitable for high-pressure environments
Best used for: Water pipelines, oil & gas, and general industrial flow control.
Globe valves regulate flow by lifting a disc or plug away from a seat. They offer good throttling capabilities.
Advantages:
Excellent flow regulation
Tight sealing
Best used for: High-pressure steam, cooling water systems, and fuel systems.
Ball valves use a spherical disc to control flow. A 90-degree turn of the handle opens or closes the valve.
Advantages:
Quick shut-off
Low leakage
Durable and easy to maintain
Best used for: Chemical, water treatment, and gas lines.
Butterfly valves feature a rotating disc that turns with the handle to regulate flow. They are compact and lightweight.
Advantages:
Fast operation
Compact design
Suitable for large diameter pipelines
Best used for: HVAC, fire protection, and wastewater applications.
These valves use a tapered or cylindrical plug to control fluid. Rotating the plug aligns the hollow passage with the flow direction.
Advantages:
Simple operation
Good for slurry or viscous fluids
Best used for: Oil and gas processing, chemical plants.
Designed for precise flow control, needle valves feature a slender needle-like plunger that allows for fine adjustments.
Best used for: Flow calibration, instrumentation systems.
Manual valves operate through mechanical movement applied by the user:
The handle or wheel is turned or pulled.
This motion actuates internal components such as a disc, gate, ball, or plug.
The valve either opens to allow fluid flow or closes to block it.
Some manual valves also allow partial opening for throttling or adjusting the flow rate. Their design ensures a mechanically simple but highly effective control mechanism, especially in low-tech or cost-sensitive applications.
Manual valves are widely used across many industries due to their versatility. Key sectors include:
Oil & Gas: For controlling flow in pipelines and drilling operations.
Water Treatment: In filtration, pumping, and distribution systems.
Chemical Industry: For corrosive and high-pressure fluid control.
HVAC: Regulating heating, ventilation, and air conditioning systems.
Pharmaceuticals: Clean room and controlled fluid environments.
Food & Beverage: Hygienic flow control for liquids and gases.
Selecting the right manual valve involves several key factors:
Is it for on/off control or throttling?
What media will flow through the valve—liquid, gas, slurry?
Ensure the valve material and design meet the pressure and temperature conditions of your system.
Choose a valve with the appropriate diameter and Cv value (flow coefficient).
Common materials: stainless steel, brass, PVC, bronze.
Make sure the valve material is chemically compatible with the fluid.
Consider available space, valve orientation, and maintenance access.
Check compliance with industry standards such as ANSI, API, or ISO.
Manual valves offer several advantages that make them an ideal choice for many systems:
No power required: Great for remote or off-grid locations.
Affordable: Lower upfront cost than motorized valves.
Simple to use: Easy to train personnel on operation.
Long-lasting: Minimal moving parts result in a longer lifespan.
Low maintenance: Especially when used under suitable operating conditions.
To ensure long-term performance, follow these manual valve maintenance practices:
Check for signs of corrosion, leakage, or wear.
Make sure handles turn smoothly without resistance.
Apply lubricant to moving parts to reduce friction and wear.
Periodically flush the valve to remove any debris or scale buildup.
Replace worn or damaged gaskets and seals to prevent leaks.
Avoid forcing valves open or closed.
Do not use manual valves in applications requiring frequent cycling unless designed for it.
| Feature | Manual Valves | Automated Valves |
|---|---|---|
| Power Source | Human-operated | Electric, pneumatic, or hydraulic |
| Cost | Low | High |
| Complexity | Simple | Complex |
| Maintenance | Low | Moderate to High |
| Use Cases | Basic control, remote/off-grid areas | High-precision, automated systems |
Manual valves are ideal where automation is unnecessary, cost-saving is a priority, and the system design is straightforward.
Manual valves are essential tools in fluid control systems. Their simplicity, reliability, and low cost make them a top choice for many industrial, commercial, and even residential applications. By understanding the types, features, and proper maintenance of manual valves, you can make informed choices and optimize your fluid systems for efficiency and longevity.
Whether you're a procurement specialist, engineer, technician, or plant manager, knowing the basics of manual valves empowers you to select the right components for your system's needs.
